JHM Trio Package - Shifter, Linkage and Bushing for 2004 and UP B6-B7 A4 (6-Speed)
Click to zoom in

JHM - Trio Package - Shifter, Linkage and Bushing for 2004 and UP B6-B7 A4 (6-Speed)

JHM-PKG-B6B7A46S
Pre order
Transmission and Drivetrain
Australia wide - Express
$795.00
JHM - Trio Package - Shifter, Linkage and Bushing for 2004 and UP B6-B7 A4 (6-Speed). The 2004 and up B6/B7 A4 "Trio" Package (6-speed)NOTE: This shifter does not work o...

JHM - Trio Package - Shifter, Linkage and Bushing for 2004 and UP B6-B7 A4 (6-Speed)

JHM - Trio Package - Shifter, Linkage and Bushing for 2004 and UP B6-B7 A4 (6-Speed).

The 2004 and up B6/B7 A4 "Trio" Package (6-speed)NOTE: This shifter does not work on the 02 and 03 3.0l V6 A4 with the 01E manual transmission. This is for the 04 and up 1.8t, 2.0t and 3.0l V6 with the 02X and 01X manual transmission. This shifter works on ALL B7 A4s with no exception, the exception above is only for B6 A4s.

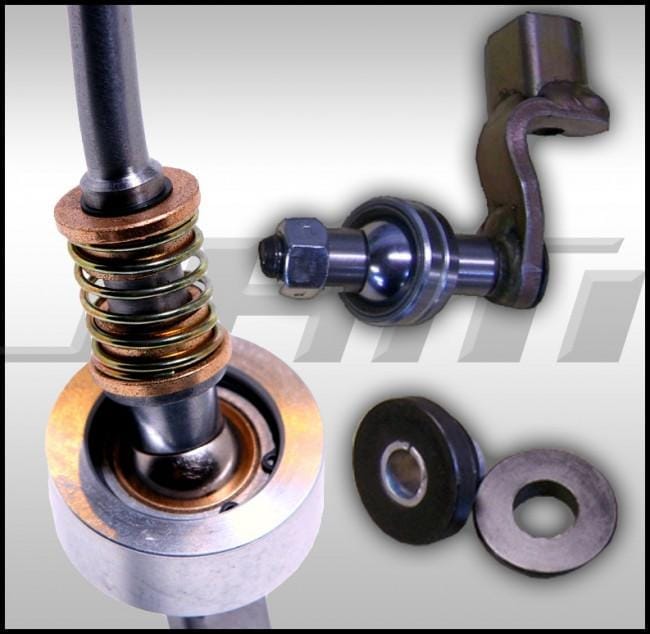

This package includes: JHM "Solid" Short Throw Shifter, Delrin Shifter Stabilizer Bushing and the "Solid" Linkage Upgrade

Guaranteeing the ultimate shifting experience.

You save $$ vs. buying these three items separately.



B6/B7 S4/RS4 Solid Shifter
PROUDLY DESIGNED AND BUILT IN CALIFORNIA

B6/B7 S4/RS4 Solid Shifter, Linkage & Bushing
New JHM Steel shaft, JHM solid pivot assembly, Tig Welded Steel lower link, Delrin Bushings, New pushdown reverse springs (stock, medium and stiff), 4 bushings to allow more clearance in the shifter box for the most throw reduction possible and all other hardware. Retains stock shifter knob. Instructions are not included with the package, just use the video and document links below and watch prior to installing.

COMES COMPLETELY ASSEMBLED (retains pushdown reverse) Ready to be installed into your factory base.
B6/B7 S4/RS4 Solid Shifter
OPTIONS:
Throw and Height: (3 throw options now included standard) UPDATED from previous models!
Knob height is now 1/2" lower than stock STANDARD with the following throw options adjustable by the installer.
1. 15% reduction - Bolt in the upper most hole (closest to the bearing) and the bottom welded base with both holes on the upper side.
2. 24% reduction - Bolt in the middle most hole and the bottom welded base with both holes on the lower side.
3. 32% reduction - Bolt in the lower most hole and the bottom welded base with both holes on the lower side.
Install Notes-->HERE

NOTE: Shifters come with 3 reduction settings (B6-B7 A4 exclusive). They ship already in the largest amount of reduction setting - bottom most hole). See this pic for more info -->HERE

B6/B7 S4/RS4 Solid Shifter, Linkage & Bushing
Additional pushdown reverse springs included for those aggressive drivers that have the tendency to accidentally push the shifter down while shifting. Comes assembled with the soft spring (plain) and comes with a medium (silver) and stiff (gold) spring to taylor to your liking.


PICTURE OF A DISASSEMBLED JHM SHIFTER -->HERE



INSTALLATION VIDEOS AND NOTES

Supplemental install instructions (adjustment of the 6-speed type shifter) -->HERE

UPDATED supplemental adjustment procedure for B6/B7 S4 and RS4 only. -->HERE

Install Notes for the shifter spacers-->HERE

B6-B7 A4 6 Speed Solid Shifter, Linkage & Bushing



NOTE: This linkage fits ONLY 2004 - on B6/B7 A4 6-speeds with the 02X and 01X manual transmission.

If you desire the ultimate in shifting, the JH Motorsports B6/B7 A4 Solid Linkage Upgrade is the perfect solution. This linkage upgrade replaces the OEM rubber/plastic socket assembly with a steel spherical bearing (similar to what the JHM Solid Shifter does for the OEM shifter box). This will give you a full mechanical race car feel, and eliminates sloppiness allowing you to optimize shifts on the street or at the track. The linkage is most purposeful when used with the JHM Solid Shifter and the JHM Delrin Shifter Stabilizer Bushing, however these parts will compliment any SS kit, including stock shifters.

To completely upgrade your stock shifting components for the best possible shifts, make sure to add our Solid Short Throw Shifter and the Solid Stabilizer Bushing to your order if you don't already have them.

B6-B7 A4 6 Speed Solid Shifter, Linkage & Bushing

INCLUDES THE FOLLOWING - JHM shift shaft link(reuse your stock rubber boot), JHM Modified Steel Spherical bearing, stainless steel spacers, all hardware, loctite and synthetic grease.

(This linkage is located at the transmission and is separate from our shifter) This linkage fits all B6/B7 A4 6-speeds, 2004 and On. The removal of the linkage rod is not too bad on the 1.8t and the 2.0t since it is located on the drivers side (Opposite side of where the downpipe is).


COMES AS A COMPLETE DO IT YOURSELF KIT Cutting is required to allow proper clearance.

VIEW COMPARISON VIDEO -->HERE
NOTE: This video was done on a B5 S4 which has the same basic design and works in the same fashion, the B6/B7 A4 linkage just looks a little different and has a shorter cross rod.

VIEW INSTALLATION INSTRUCTIONS -->HERE
NOTE: These instructions only cover the installation of only the actual kit once the linkage rod is removed from the car.

VIEW INFORMATIONAL VIDEO ABOUT THE LINKAGE ON CARS EQUIPPED WITH A 6 SPEED -->HERE
NOTE: This video helps you have a better understanding of the linkage and how this shift rod would be removed for replacement. However, this video was done on a B5 S4 which has the same basic design and works in the same fashion, the B6/B7 A4 linkage just looks a little different and has a shorter cross rod.

PICTURE OF THE JHM LINKAGE UPGRADE FULLY ASSEMBLED -->HERE

NOTE: Some cutting of your OEM linkage rod is required, other than that, this is a full bolt in kit.

INCLUDES THE FOLLOWING - JHM Delrin 2-piece bushing to replace the OEM rubber bushing, 1 - steel washer, 1 - Mounting bolt and 1-steel bushing insert.

(This bushing is located at the transmission and is separate from our shifter)

VIEW COMPARISON VIDEO -->HERE

VIEW INSTALLATION VIDEO -->HERE
NOTE: This video is just a guide. The install was done on a 5 speed car, on a 6 speed car the bushing is on top of the trans and is more difficult to access.

VIEW INFORMATIONAL VIDEO ABOUT THE LINKAGE ON CARS EQUIPPED WITH A 6 SPEED -->HERE
NOTE: This video helps you have a better understanding of the linkage and how this bushing would be replaced.

PICTURE OF THE JHM BUSHING VS. STOCK -->HERE

NOTE: This bushing will transfer more noise and vibration to your shifter and shifter box vs. the stock rubber bushing. This is what gives you the enhanced feel and confidence when shifting. This is recommended for serious enthusiasts only; who want to fully compliment their JHM solid short throw shifter and linkage upgrade and want their car to shift as precise as possible.

For shipping quotes: Please sign in or join then put the items you want in your shopping cart and proceed to checkout.

This product fits the following vehicles:

Make Model Chassis Engine
Audi A4 B7 (2005.5-2009) all
Audi A4 B6 (2002-2005) all
