034 Motorsport - Audi A3 8P 2.0 TFSI (147 kW) EA888 - Tuning - Stage 1 & 2 ECU Tunes
034 Motorsport - Audi A3 8P 2.0 TFSI (147 kW) EA888 - Tuning - Stage 1 & 2 ECU Tunes.
Flash tune your Audi A3 8P from home with 034 Dynamic+ software.034 Motorsport Performance ECU tuning software is a must-have for your 8P Audi A3 powered by the EA888 Gen 1 2.0 TSI engine (2009-2013). A full suite of software files are available including stage 1, stage 2, DQ250 and different fuel maps for 95 and 98 RON.
Stock: 197 HP / 280 Nm
034 MOTORSPORT FIGURES
Stage 1: 231 HP / 368 Nm +88 Nm
Stage 2: 264 HP / 412 Nm +132 Nm
034 MOTORSPORT FEATURES
- Various fuel maps available
- Refined throttle mapping
- Raised RPM limiter
- Speed limiter removed
- Free Crackle map with stage 2
- Advanced thermal management
- DQ250 DSG tunes available
GET READY TO TUNE YOUR AUDI A3 8P
034 Motorsport ECU tunes are flashed directly through the factory OBD-II port using your Dynamic+ End User Flash Kit. Upgrading tunes to a higher stage is easy. After your purchase, install any additional required hardware, download your new tune, and flash your ECU and DSG.
Add to cart: Dynamic+ End User Flashing Kit
034 Motorsport’s proprietary calibrations for the Bosch MED17 ECU safely and effectively increase the power output of the 2.0 TSI engine. The result is a noticeable improvement in acceleration and throttle response, without any sacrifice in driveability or reliability.
034 Motorsport's EA888 Gen 1 2.0 TSI Performance Software was developed entirely in-house on 034 Motorsport's Development MK6 Volkswagen GTI with extensive road, track and Dyno testing on 034's AWD Mustang Dynamometer.
AUDI A3 8P EA888 2.0 TFSI FIGURES
|STAGE||HP||NM||HP GAIN||NM GAIN||RPM|
|Stock||197 HP||280 Nm||6,800 RPM|

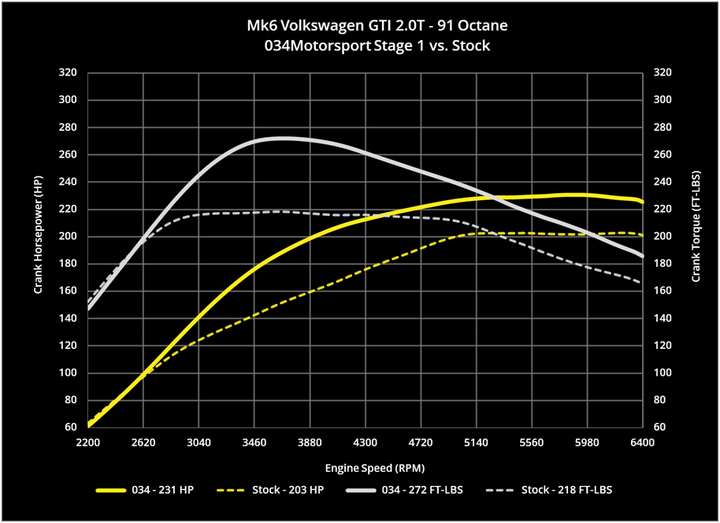

|Stage 1||231 HP||368 Nm||40 HP @ 4,000 RPM||73 Nm @ 3,800 RPM||7,000 RPM|

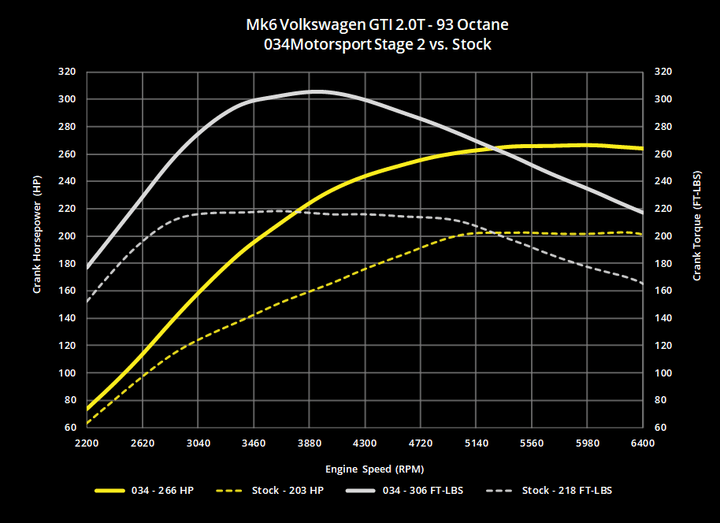

|Stage 2||266 HP||414 Nm||68 HP @ 4,150 RPM||120 Nm @ 4,000 RPM||7,000 RPM|

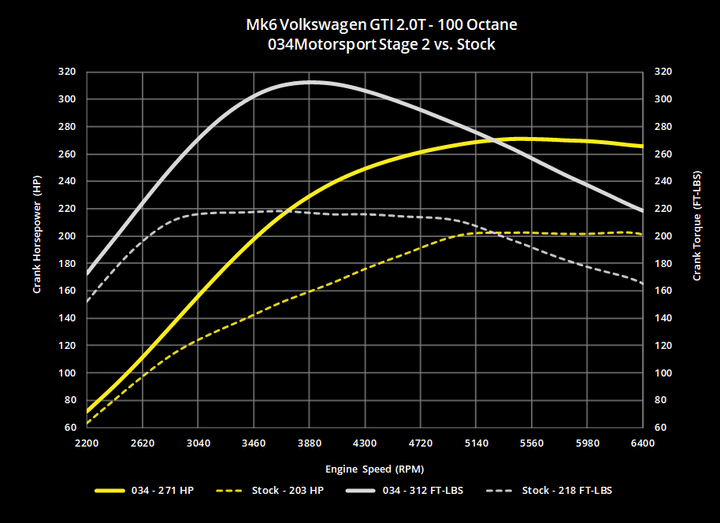

|Stage 2||271 HP||423 Nm||73 HP @ 4,200 RPM||130 Nm @ 4,000 RPM||7,000 RPM|
STAGE 1 AUDI A3 8P
034 Motorsport Stage 1 Performance ECU Software for the EA888 Gen 1 2.0 TSI engine is engineered to safely increase horsepower and torque with no hardware modifications required. 034Motorsport's proprietary calibrations increase boost while optimizing timing and fueling maps to extract additional power from the 2.0 TSI engine.
Stage 1 Performance Software features a higher redline of 7,000 RPM, resulting in a broader, more usable powerband. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation. Stage 1 Performance Software also enables left foot braking, which allows for further control of the vehicle when driving on track.
STAGE 2 AUDI A3 8P
034Motorsport Stage 2 Performance Software for the EA888 Gen 1 2.0 TSI engine is engineered to further increase horsepower and torque with the addition of a high-flow downpipe upgrade and performance air intake. 034Motorsport's calibrations optimize the factory ECU for these hardware modifications in order to extract additional power from the 2.0 TSI engine.
AUDI A3 8P SOFTWARE AND HARDWARE REQUIREMENTS
|STAGE||REQUIRED MODIFICATIONS||RECOMMENDED MODIFICATIONS|
034 MOTORSPORT DYNAMIC+ END USER FLASHING KIT
034 Motorsport's Dynamic+ End User Flashing Kit allows customers to receive and install software updates and revisions, flash back to stock, or upgrade to the next stage of performance software for their vehicle.
Requirements for End User Flashing:
- Windows 7 or Windows 10 Laptop with Available USB Port
- Power Supply for Laptop
- Secure Wired (Or Very Stable WiFi) High-Speed Internet Connection
- CTEK Trickle Charger (Or Similar)
- Available Electrical Outlets
034Motorsport End User Flashing Kit Contents:
- 034Motorsport OBD-II Adapter
- USB-A to USB-B Cable
- Carrying Case
- User Credentials (Provided Via Email)
How to use the end user flash cable & software
- Receive welcome email (after purchase) with account and user guide
- Plug into OBD2 port and USB port on laptop & take read of stock ECU / TCU
- Send 034 stock file details from software (very easy)
- Plug back into OB2 port & USB and flash tune your ECU / TCU
Once you have taken the stock read of the ECU you can always flash your car back to stock at any time. You can also flash between stages.
The reading / flashing and software process is not complicated. Everything is straight forward and anyone who has the computer skills to send an email can do this process.
Initial read time - 10 minutes
First flash time - 20 minutes
Flash back to stock - 10 minutes
Upgrading files (stage 1 to 2) - 5 minutes
Download: 034 Motorsport Dynamic + user manual
What happens next?
- We will create a tuning order for you with head office
- We will post you the Dynamic+ tuning cable - Express post only
- Please wait and 034 tuning support will send you an account activation email. This contains instructions and links to download the tuning software
- A user manual is available to download from every tuning product page
- You then proceed to take a read of your ECU/TCU and flash tune your vehicle
- 034 will provide direct support for you. You will be able to communicate with the software engineers
- Enjoy the transformation of your vehicle
Why purchase 034 Motorsport?
- Exceptional quality
- Passionate and devoted company
- Continual product development
- Excellent local and manufacturer support
- Extremely reasonable with pricing
- Huge selection of supporting products
- Superior software calibration
- Paypal, zip pay, afterpay, credit and debit
- Free express only shipping
- 30 day money back satisfaction guarantee
Please contact us to discuss pricing, discounts and package deals.
We will EXPRESS post you the cable and start a tuning order for you.
We will create your order as soon as you purchase the product. This means by the time you receive your tuning cable, you should already have your introductory email.
This is an email from 034 Motorsport which includes your user account, link to download software and user manual.
You may have to wait a day or two. Please also check your spam, updates and other email tabs for the email from 034 motorsport. If it still hasn't come after a couple of days please contact VAGPARTS. Please note weekends are not working days.
Windows laptop, internet connection, tuning cable and tuning account.
Please open the tuning software and identify your ECU and TCU. This is very fast. Once this information is uploaded 034 Motorsport will then notify you when your new tunes are ready.
It can be the same day or some other cases a working day or two. Sometimes files need to made and this involves human software engineers and time.
This just means a new ECU or TCU files needs to be uploaded to the server for you to flash tune. Please wait.
This is NOT a difficult process. If you have the ability to open and email and send an email, this is the same level of computer literacy needed.
The total time to tune the car is around 30 mins. Flashing between files, upgrading and so on once you have done the first installation is a couple of minutes.
You can email VAGPARTS Australia and 034 motorsport directly for tech support. When you email 034 you can speak to the software engineers and dedicated tuning support staff.
You may need to flash your car back to stock. You can do this by forcing the car to stock from 034 software.
Yes these are separate control units and need to be individually flashed.
This is NOT a difficult process. If you have the ability to open a email and send a email, this is the same level of computer literacy needed.
"A program for this control unit was not found". This is normal, it just means a file isn't ready for you to flash. Please wait and one will be uploaded to the server for you.
