034-401-1009 - 034Motorsport Density Line Adjustable Upper Control Arm Kit, Track Spec, B8 Audi A4/S4/RS4, A5/S5/RS5, Q5/SQ5
or make 4 interest-free payments of $217.50 AUD fortnightly with More info
- 2009 - 2014 Audi A4 (B8)
- 2010 - 2014 Audi S4 (B8)
- 2008 - 2014 Audi A5 (B8)
- 2008 - 2014 Aud S5 (B8)
- 2013 - 2014 Audi RS5 (B8)
- 2009 - 2014 Audi Q5/SQ5 (B8)
- CNC Machined Billet 6061 Construction, Black Anodized Finish
- 034Motorsport Density Inner Bushings
- Aurora Spherical Bearings Featuring Teflon Race Lining
- Built in Safety Washer to eliminate any chance of the spherical ever separating
- Track Spec: Already 1/8" shorter than stock, these offer an additional 5/8" of inward adjustability from stock length, adjustable in 1/36" increments, each 1/36 adjustment is approximately .1 degrees for highly accurate adjustments.
- No tightening creep like you get with a turn buckle.
- Adjustments can be easily made by threading out an M6 head allen bolt, the pinch pin stays installed in the upright. A jam nut keeps everything tight once adjusted.
- Dust boots are now included with all adjustable upper control arms. We ship the boots uninstalled; once you have the alignment set, install the dust boots before final installation.

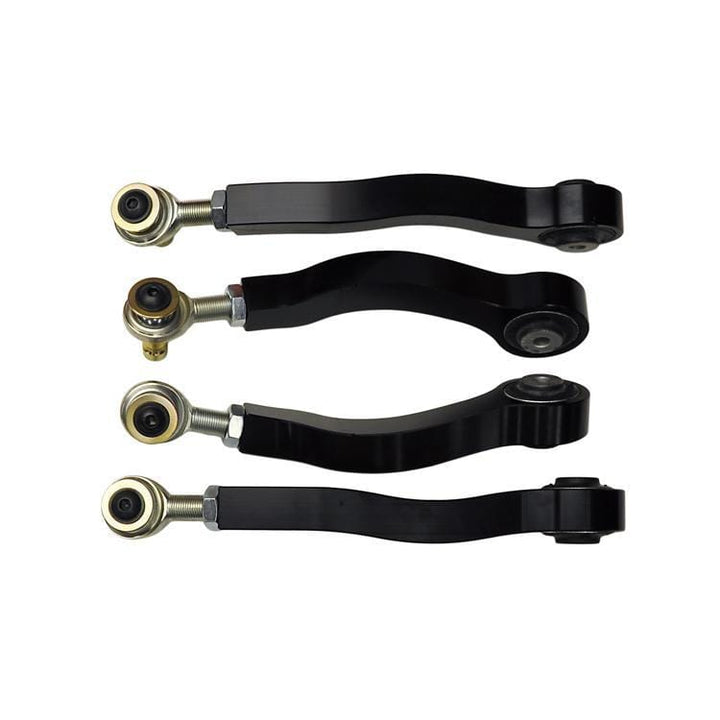

Arms ship with everything pictured and assembled, price for one kit for one front suspension.
Rebuild Kits: We now offer complete rebuild kits for these control arms here: Rebuild Kit, Density Line Adjustable Upper Control Arms
Note - Do not run the heims with less than 8 threads in the control arm itself, less threads can cause failure of the part and 034Motorsport will not be responsible for installation errors. If your alignment requires that you must have less than 8 threads engaged then contact us, but do not run the car with less than 8 threads engaged! Tighten M10 pan head allen bolt to 45 ft/lbs with blue loctite.
Control arms do not have to be removed to adjust camber. Please see the video below highlighting the ease of adjustment.
See install document for installing dust boots:
